CRN Tecnopart S,A - Barrel, Drum heaters

Flat base heating for standard 200 litre drums

The heating base for containers is specially designed to melt or reduce the viscosity of the products. The base diameter allows use with containers of all sizes up to 200 litres. It is controlled by a capillary Thermostat. If rapid heating is required or needs to quickly accept the heat content, or whether it is solid media, heating side can be used together with the base jackets.

Model HB 20K

Power 1300W 230V
Heating element: Armour protected
Rockwool insulation
Thermostat 30-110 ° C
Dimensions: Diameter 510x85mm high
Weight 13 kg
Power cable 2 meters
IP65

Model HBD 900

Power 900W 230V
Heating element: Silicone Manta
Rockwool insulation
Thermostat 0-150 ° C
Dimensions: Diameter 550 (Base 600) x70mm high
Weight 14 kg
Aliomentación cable 2 metrosIP40

Model HBDK 900

Power 900W 230V
Heating element: Cable fiberglass impregnated with silicone
Insulation: rockwool 50mm
Thermostat 0-120 ° C
Dimensions Diameter high 550x110mm
Weight 15 kg
Power cable 2 meters
IP40

Model HBDK 1800Power 1800W 230V

Heating element: Armour protected
high density rockwool insulation
Thermostat 50-300 ° C
Dimensions Diameter high 550x75mm
Weight 15 kg
Power cable 2 meters
IP54

Metalic clamp heating for drums

	For standard 200 litre drums
	BHM heating cover 200 Two hinged parts, with wheels for easy installation. Constructed in painted steel Mineral wool insulation 50 mm 400V three-phase power 4650W Built thermostat from 50 to 350 ° C Ø 870 Dimensions (with box Thermostat) x 1080mm It includes a cover for the top. Manufacture only on request
	Model HM 20 K Robust and sturdy construction. The inner surface of aluminum ensures excellent heat transfer to the surface of the drum. quick release Incorporates a control thermostat 30-110 ° C Dimensions: Ø 550 x 230 mm Protection: IP 65 (DIN 40 050) Power: 2000W at 230V Connection: cable 2 m with connector, moisture protection
	Model S200 CB 20 Built with stainless steel sheet. quick release Thermostat incorporates a control 0-120 ° C Dimensions: Ø 550 x 200 mm Protection: IP 40 Power: 2000W at 230V Connection: cable 2 m
	For standard 100 litre drums
	Model S100 CB 20 Built with stainless steel sheet. quick release It incorporates a control thermostat 0-120 ° C Dimensions: Ø 420 x 150 mm Protection: IP 40 Power: 1200W at 230V Connection: cable 2 m
	For standard 50 litre drums
	Model S050 CB 20 Built with stainless steel sheet. Thermostat incorporates a control 0-120 ° C Dimensions: Ø 320 x 150 mm Protection: IP 40 Power: 1000W at 230V Connection: cable 2 m
	For standard 25 litre drums
	Model S025 CB 20 Built with stainless steel sheet. It incorporates a control thermostat 0-120 ° C Dimensions: Ø 250 x 150 mm Protection: IP 40 Power: 750W 230V Connection: cable 2 m
HEATING SLEEVES TYPE HMM
	Hinged heating sleeves with metal jacket The HMM heating sleeve is a complete heating element consisting of heating, thermal insulation and closed outer metal jacket. The metal jacket encloses all edges and the inside surface of the sleeve, which consists of two half shells. One side has a hinge, on the other side there are adjustable turnbuckles. This means that tolerances in the outer diameter can be compensated. The length, inner diameter and insulation thickness are designed for your special applications. Longer built-on accessories can consist of several segments.

Silicone heating bands

Heating bands (temperature up to 130 ° C)
Glass fiber reinforced
Fastening by tension springs
Moisture resistant.
Incorporate an adjustable Thermostat

	For standard 200 litre drums
	BHS-T 1100 Dimensions 1780 x 95mm 1100W 230V IP 43 Thermostat 0 - 130 ºC
	BHS-T 1000 Dimensions 1650 x 125mm 1000W 230V IP 40 Thermostat 0 - 120 ºC
	BHS-T 1001 Dimensions 1700 x 115mm 1000W 230V IP 40 Thermostat 0 - 120 ºC
	BHS-T 1002 Dimensions 1700 x 180mm 1000W 230V IP 40 Thermostat 0 a 120 ºC
	BHS-T 1500 Dimensions 1650 x 180mm 1500W 230V IP 40 Thermostat 0 - 120 ºC
	BHS-T 1501 Dimensions 1700 x 180mm 1500W 230V IP 40 Thermostat 0- 120 ºC
	For standard 100/105 litre drums
	BHS-T 750 Dimensions 1300 x 95 mm 750W 230V IP 43 Thermostat 0 - 130 ºC
	BHS-T 801 Dimensions 1300 x 115 mm 800W 230V IP 40 Thermostat 0 - 120 ºC
	BHS-T 800 Dimensions 1300 x 125 mm 800W 230V IP 40 Thermostat 0 - 120 ºC
	For standard 50/60 litre drums
	BHS-T 500 Dimensions 1120 x 95 mm 500W 230V IP 43 Thermostat 0 - 130 ºC
	BHS-T 501 Dimensions 950 x 115 mm 500W 230V IP 40 Thermostat 0 - 120 ºC
	BHS-T 502 Dimensions 940 x 125 mm 500W 230V IP 40 Thermostat 0 - 120 ºC
	For standard 25/30 litre drums
	BHS-T 301 Dimensions 850 x 95 mm 300W 230V IP 43 Thermostat 0 - 130 ºC
	BHS-T 300 Dimensions 800 x 125 mm 300W 230V IP 40 Thermostat 0 - 120 ºC

Drum heating jackets insulated with teflon polyester

Designed for use in drums or tanks containing any material you wish to maintain or transform by heat.

Suitable for heat-resistant plastic containers.
Woven Polyester Teflon insulation jacket.

Adjustable quick release buckles.

	For standard 200 litre drums
	M800/200 Dimensions 1990 x 800mm 1200W 230V IP 40 Thermostat 0 to 90 ºC
	M450/200 Dimensions 1990 x 450mm 450W 230V IP 40 Thermostat 0 to 90 ºC
	For standard 100/105 litre drums
	M150/100 Dimensions 1650 x 370 mm 400W 230V IP 40 Thermostat 0 to 90 ºC
	For standard 50/60 litre drums
	M150/050 Dimensions 1330 x 460 mm 250W 230V IP 40 Thermostat 0 to 90 ºC
	For standard 25/30 litre drums
	M150/025 Dimensions 1200 x 400 mm 225W 230V IP 40 Thermostat 0 to 90 ºC

Fiberglass insulated heating jackets

• The drumheating mantles in this range are designed to operate at temperatures up to 200 ° C.

• Available in four standard sizes for drums of 25 litres, 50 litres, 105 litres and 200 litres.
• All heaters include their own thermal insulation to increase thermal efficiency.
• Drum heating blankets are specifically designed to melt or reduce the viscosity of products requiring higher temperatures up to 200 ° C.
• Designed to work in metal drums.

	For standard 200 litre drums
	Model MFV800/200 Incorporates thermostat regulator 0 to 200 ºC Dimensions : 1990 x 800 mm Protection : IP 51 Power : 1200W a 230V Connection : cable 2 m
	For standard 100 litre drums
	Model MFV370/100 Incorporates thermostat regulator 0 to 200 ºC Dimensions: 1650 x 370 mm Protection: IP 51 Power: 700W a 230V Connection : cable 2 m
	For standard 50 litre drums
	Model MFV460/050 Incorporates thermostat regulator 0 to 200 ºC Dimensions: 1330 x 460 mm Protection: IP 51 Power: 450W 230V Connection: cable 2 m
	For standard 25 litre drums
	ModelMFV 400/025 Incorporates thermostat regulator 0 to 200 ºC Dimensions: 1200 x 400 mm Protection: IP 51 Power: 380W 230V Connection: cable 2 m

Heaters for IBC containers

Designed for use in drums or tanks containing any material
You wish to maintain or transformed by heat.
Suitable for heat-resistant plastic containers
Polyester Teflon Shirt
Woven polyester insulation
Resistance spiral with silicone insulation
Quick adjustable buckles desengnche

	IBC Heating Jacket
	C-IBC 1300 Dimensions 4400 x 1000mm One circuit of 1300W 230V IP 40 One thermostat 0 to 90 ºC or 0 to 40 ºC
	C-IBC 2000 Dimensions 4400 x 1000mm Two circuits of 1000W 230V IP 40 Two thermostats 0 to 90 ºC or 0 to 40 ºC
	C-IBC 3000 Dimensions 4400 x 1000 mm Three circuits of 1000W 230V IP 40 Three thermostats 0 to 90 ºC or 0 to 40ºC

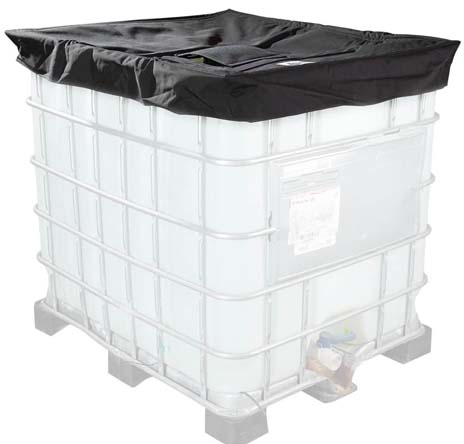

	IBC topcover
	The IBC Top Cover is a universal lid that fits any standard 1000L IBC container. The topcover can be used together with the IBC Container Heater or the IBC Insulation Body Cover. Using the lid together with a heater or insulation cover will minimize heating loss and help heating faster or maintaining temperature for a longer period of time. The topcover has a strategically placed velcro pad to access the top opening of the IBC container. Technical specifications: Cordura material with Teflon coating. Water repellent. Chemical resistent. Standard Size: 1000L
	Silicon flat base heating mat
	HIBC A Silicone heater 2700W 230V IP 40 Built-in temperature probe
	HIBC ACT Electronic temperature controller Temperature range from 0 to 150 ºC Power 230V

Drum heating jacket for the food & pharmaceutical industries

Heating bands for drums.
• The heating mantles drum in this range are designed to operate at temperatures up to 200 ° C.
• Available for 200-liter drums. Special models on demand
• All heaters include their own thermal insulation to increase thermal efficiency.
• Drum heating blankets are specifically designed to melt or reduce the viscosity of products requiring higher temperatures up to 200 ° C.
• Designed to work in metal drums.

	For standard 200 litre drums
	Model MFA800/200 Incorporated with thermostat regulator 0 to 200 ºC Dimensions : 1990 x 800 mm Protection : IP 54 Power :1200W a 230V Connection : cable 3 m

ATEX Heaters for drums

Optimum and uniform heat transfer

Protection rating IP6
Contains no silicone.
Full PTFE coating for long life and maximum reliability against bases, acids, solvents, etc.
Quick release buckles for perfect fit.

	Models available
	MTX 800/200 Dimensions 1990 x 800mm 1050W 230V Heater ATEX 200 litre drums
	C-IBC 1500 Dimensions 4400 x 1000mm 1500W 230V Heater ATEX for IBC container
	C-IBC ATEX Insulating topcover lid ATEX for IBC
	TAPA MTX 800/200 Insulating topcover lid ATEX for 200 litre drums
	PT100 1201 ATX PT100 ATEX
	REG 1201 ATX Electronic temperature controller, ATEX

Immersion Heaters for tanks and open deposits

Portable heaters (Series TB, TR, DH y RV)
	Easy to use in open containers with a significant level of liquid, and little variable. Choosing the right model depends on the load capacity of the liquid to be heated They are practical to use, and require no adaptation to heat the container for installation. Different models can be provided for specific applications. TB Series water. Niquelado. Carga specific copper pipe 6 W / cm2 Water TR series. Copper nickel tube. Specific charge 6 W / cm2 DH series for oil. AISI 321 stainless steel tube specific load 2 W / cm2 PB Series for acid baths. Inox tube coated lead. Specific load 2 W / cm2 RV Series wine. Stainless steel AISI 321. Tube specific load 2 W / cm2
Portable heaters (Series BH)
	General characteristics • Degree protection against moisture IP20. • Stainless steel tube AISI 316L Ø10 mm. Cable • 3-wire hose length 1500 mm. • Standard voltage 230 VAC Series BHA, BHB, BHC, BHX, BHL, and BHP
Heaters for open tanks and deposits
	Suitable for heating liquids in open vats with low levels or variables. Three-phase 400 V star wiring in the standard models. Other wiring on demand. Outlet tube in AISI 304 L with a length of 1 meter. Other lengths on demand. Optionally can incorporate a control thermostat RBA series Immersion heaters for Cuba. AISI 321. In specific load 2 W / cm2. Water RC series Heaters pump base. AISI 321. specific load 2 W / cm2. Heavy fuel Special production models They are designed for heating liquids in open tanks, even with low or variable levels (depending on model) for degreasing or surface treatment can be tailored to the needs of the process, and the dimensional limitations of the equipment. Models for horizontal heating (wall mount), or horizontal are made (Cuba background)

Specially fabricated flexible heaters

Easy to remove and exchange
Easy to install
Ideal for sophisticated applications
Long duration
Made to measure the shape of the containers, pipes, valves or pumps
Temperatures from 0 to 900 ° C
Efficient heating system
Optimal temperature distribution
Also for areas classified
They include thermal insulation

Nominal temperature	from 80 to 900 ºC
Nominal voltage	Maximum 500V
Heat density	500 W/m2 - 20000 W/m²
Combinations possible
Surface Material	plastic fabric with or without coating PU / PVC	Fiberglass coated with silicone or PTFE	Uncoated fiberglass	Uncoated quartz fabric
Fasteners	Fiberglass tape	Eyelets, hooks, Velcro fasteners	Fiberglass tape with silicone adhesive	Quartz cords or fiberglass
Primary isolation of the heating wires	PTFE	Fibreglass	Quartz fabric	Quartz fabric
Thermal isolation	Plastic foam	Fibreglass	Silicon foam	Quartz tissue ceramic wool
Outer surface of the thermal insulation	The outside surface temperature of insulation allows use of the following materials: Sinrevestimiento cone plastic fabric, to 80 Aluminized glass fiber to 160 ° C Glass fiber coated with silicone oPTFE, to 220 Fiberglass or quartz, uncoated, for higher temperatures

HP 60 Model For temperatures Up to 80 ° C	Formed by electric heating elements sealed in polyester fabric coated, washable and impermeable. With thermal insulation foam 5 mm thick. The shape of the HP 60 heater can be adapted to various sizes of surfaces or containers; This includes round and square openings. Options for fixing, using hooks, eyelets and Velcro
HMG Model For temperatures Up to 250 ° C	It is formed by a heating cable with PTFE insulation fixed in a metallic grid

Accesories

Drum insulation jacket

The insulated jacket is designed as a jacket for at drum, isolating and maintaining temperature inside the drum. As for standards the insulation jacket fits a standard 200 liter drum.

Standard models
          · 200 litres
          · 100 litres
          · 50/60 litres
          · 25/30 litres
